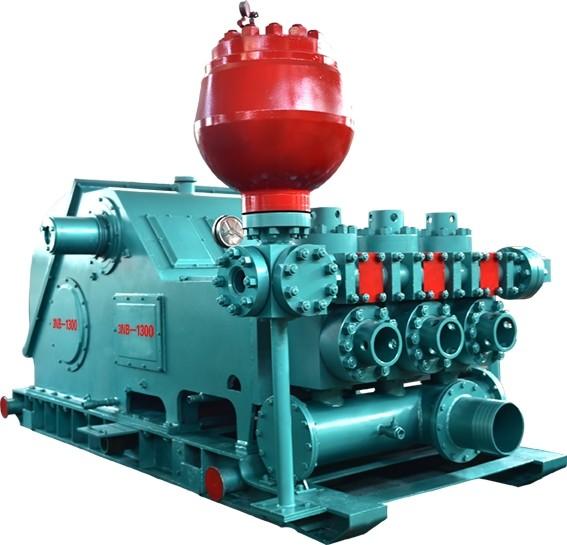

1300hp Reciprocating Triplex Pump Oil And Gas Single Acting Piston

Brand Name : XW

Model Number : 3

Certification : ISO9000

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 100

Delivery Time : 30

Power Pating : 955

Stroke Rating : 120

Stroke Length : 305

Gear Ratio : 4.194

Inlet Dia : 305

Outlet Dia : 101

Contact Now

1300 hp/kw 4300*2450*2513 3NB Series Cementing Pump

3NB-1300泥浆泵技术参数表

型号Model

型式Type

输入功率

Input power

额定泵速

Rated pumpSpeed

冲程长度

Stroke length

齿轮传送比

Gear ratio

主动轮额定转速转/分

Drive Wheel Rated speed R/Min

3NB-1300

三缸单作用

Triplex Single-Acting piston pump

755kw

1300(hp)

125冲/分

Stroke/Min

305mm

4.194

503

吸入管径Dia.of Suction Manifold

排出管径Dia.of Discharge Manifold

外形尺寸(立方毫米)

Overall size mm³

重量

Weight(kg)

不含大皮带轮,空气包重(kg)

Not including the Big Belt and pulsation Dampener Weight

305mm

101mm

4300×2450×2513

21500

20000

性能参数表

缸套直径(Cylinder dia) mm

泵速(冲/分)

Pump Speed(Stroke/Min.)

Ф130

Ф140

ф150

ф160

ф170

ф180

ф190

理论排量(升/秒)Theoratic Displacement(L/S)(GPM)

120

24.28

28.16

32.32

36.78

41.52

46.54

51.86

110

22.25

25.81

29.63

33.71

38.06

42.67

47.54

100

20.23

23.46

26.94

30.65

34.60

38.79

43.22

18.21

21.12

24.24

27.58

31.14

34.91

38.89

16.19

18.77

21.55

24.52

27.68

31.03

34.57

泵压Pump pressure(Mpa)

机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%.
